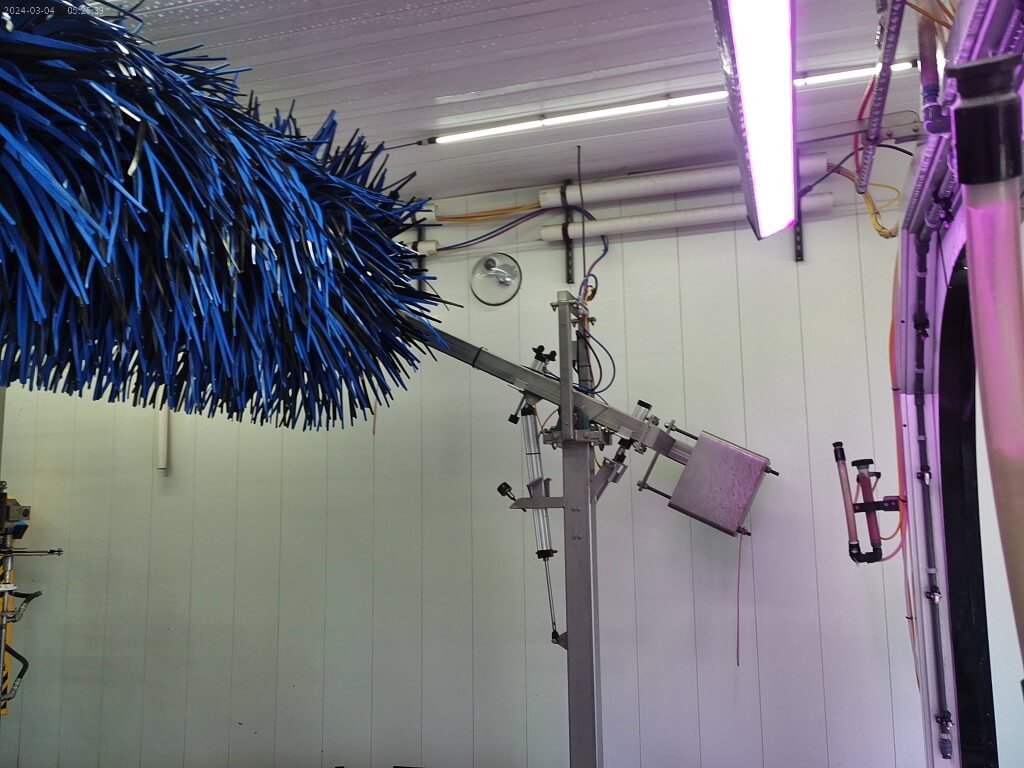

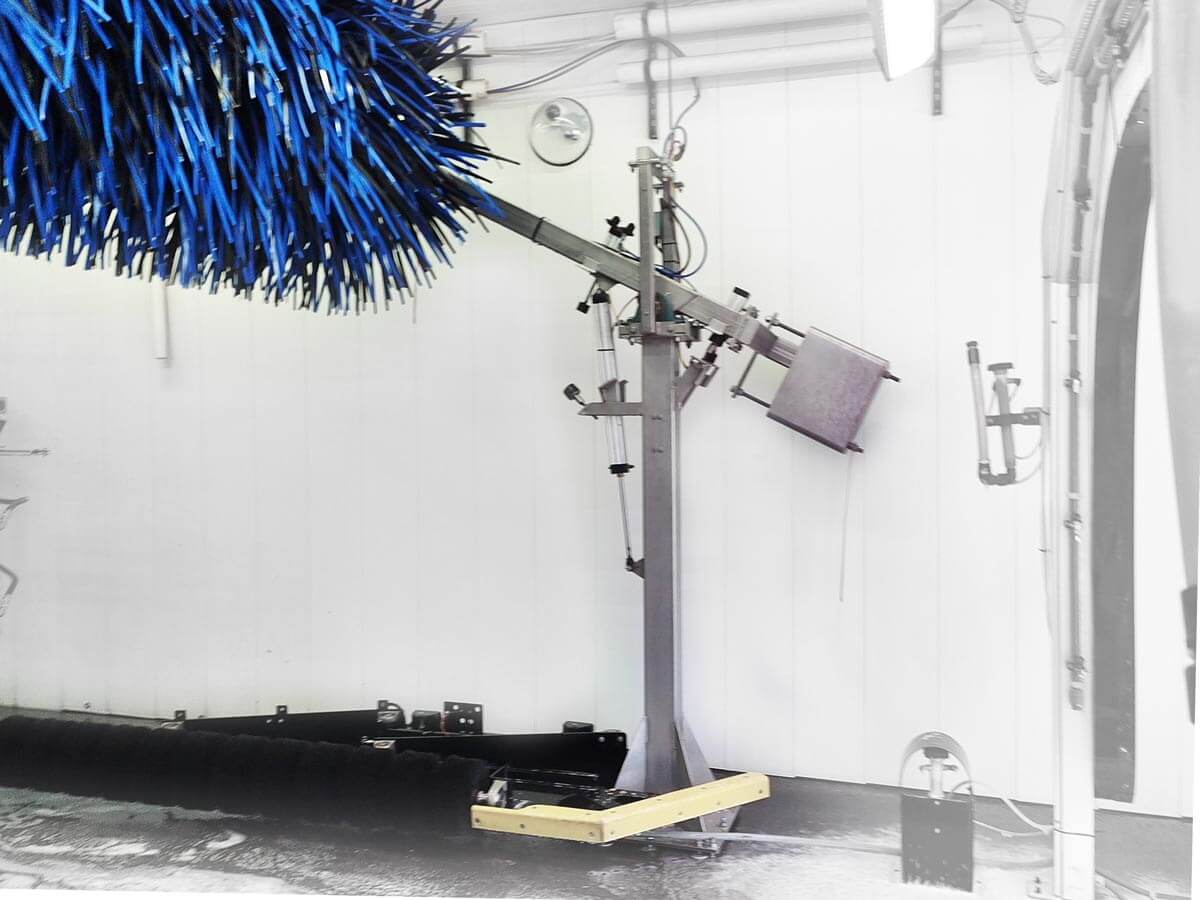

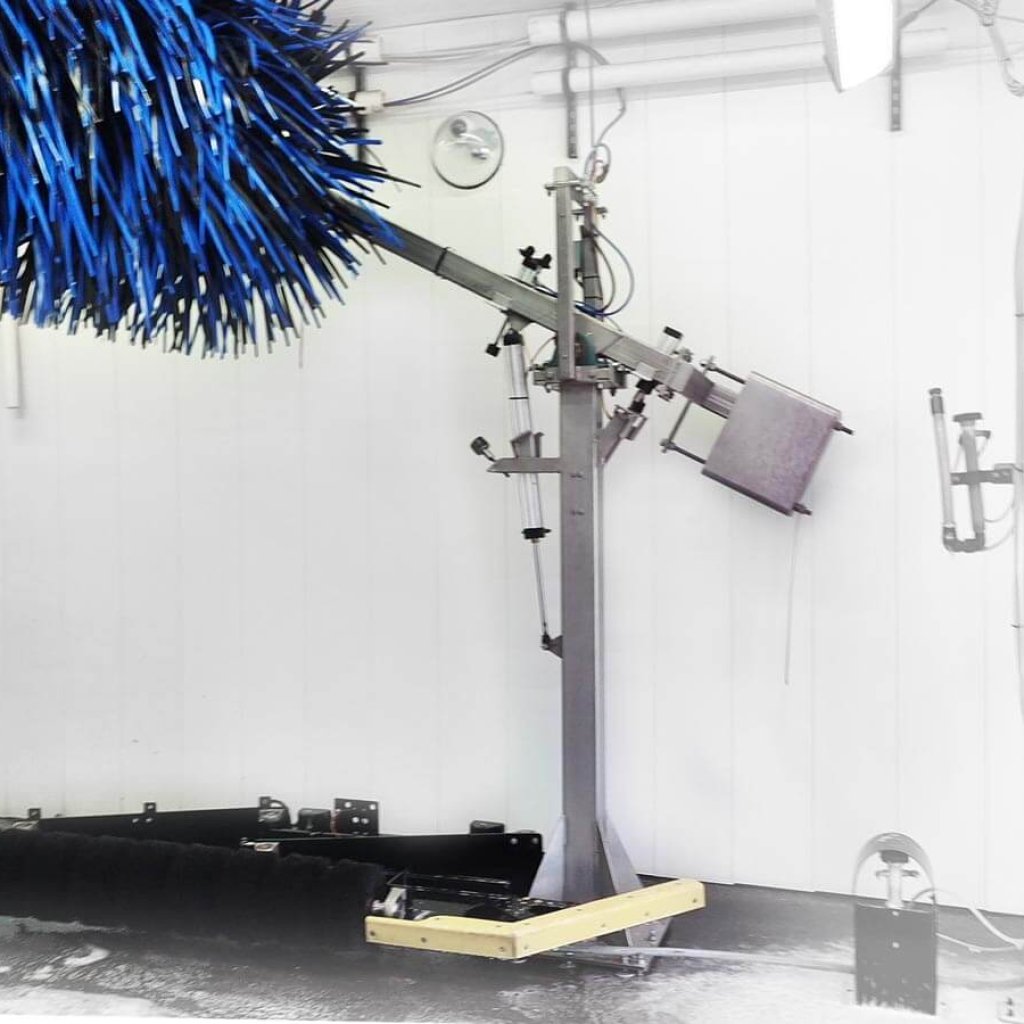

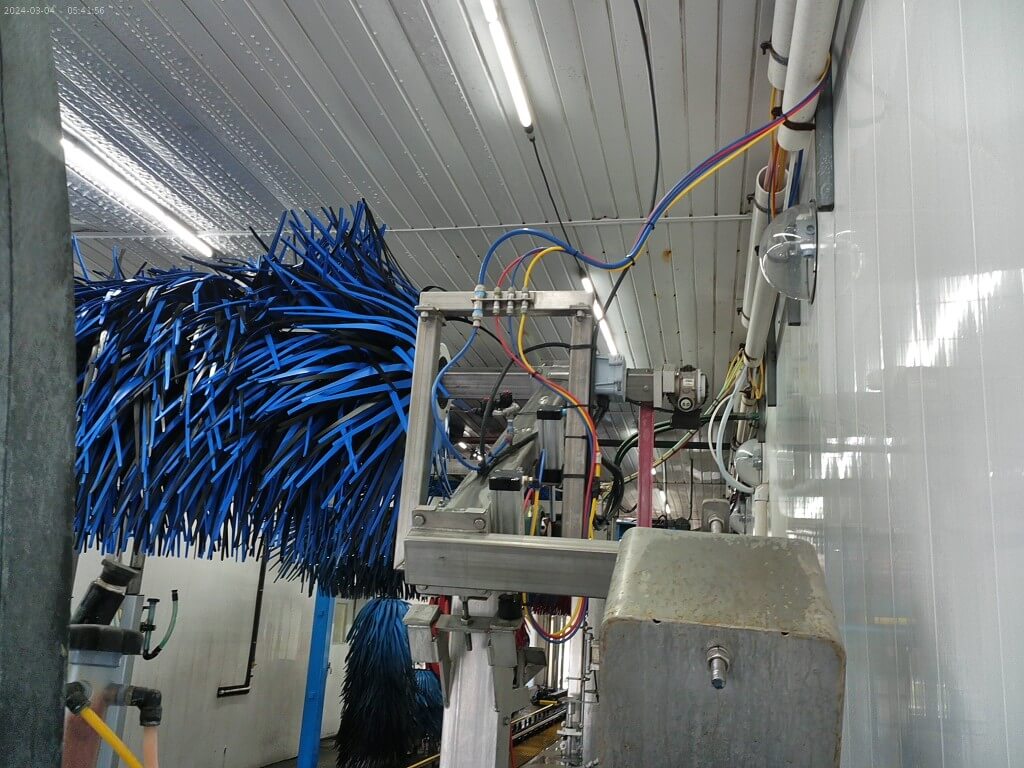

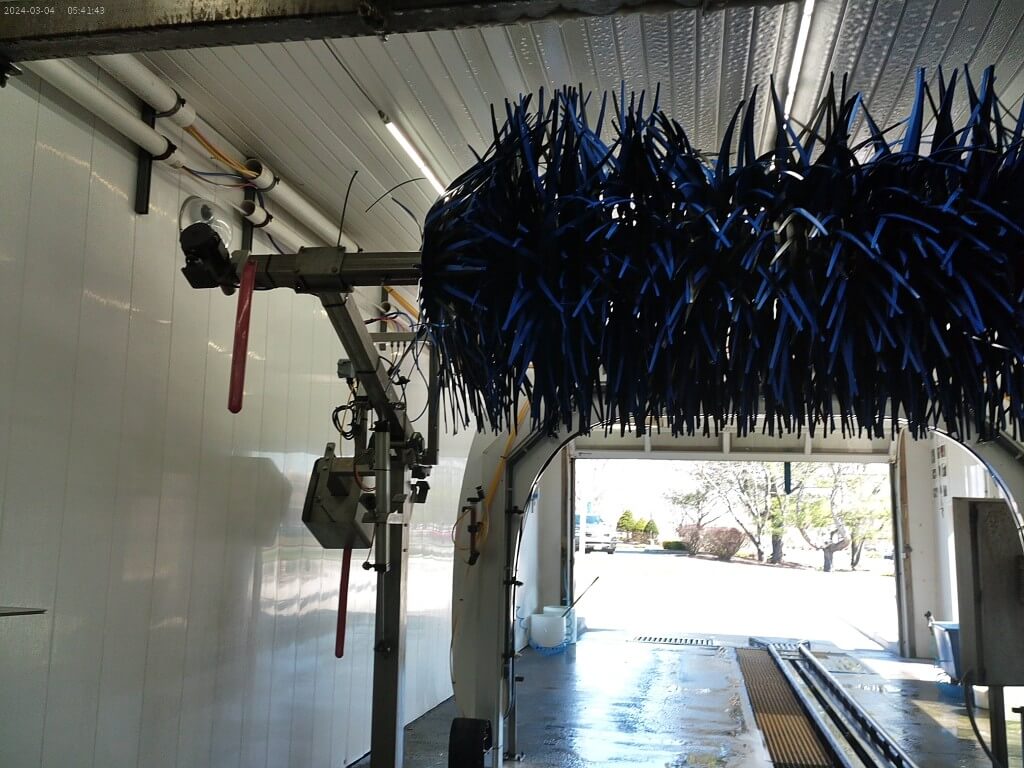

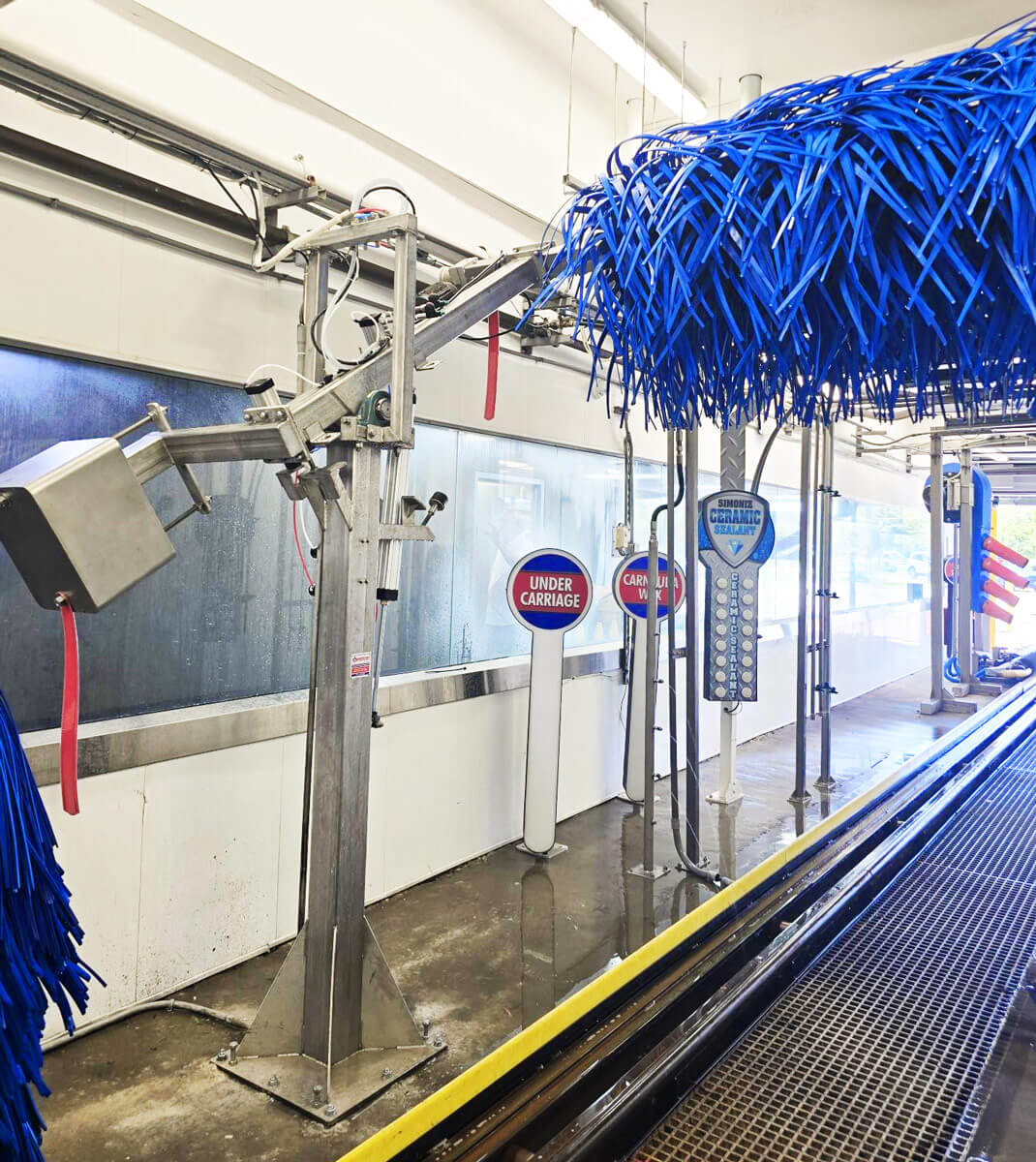

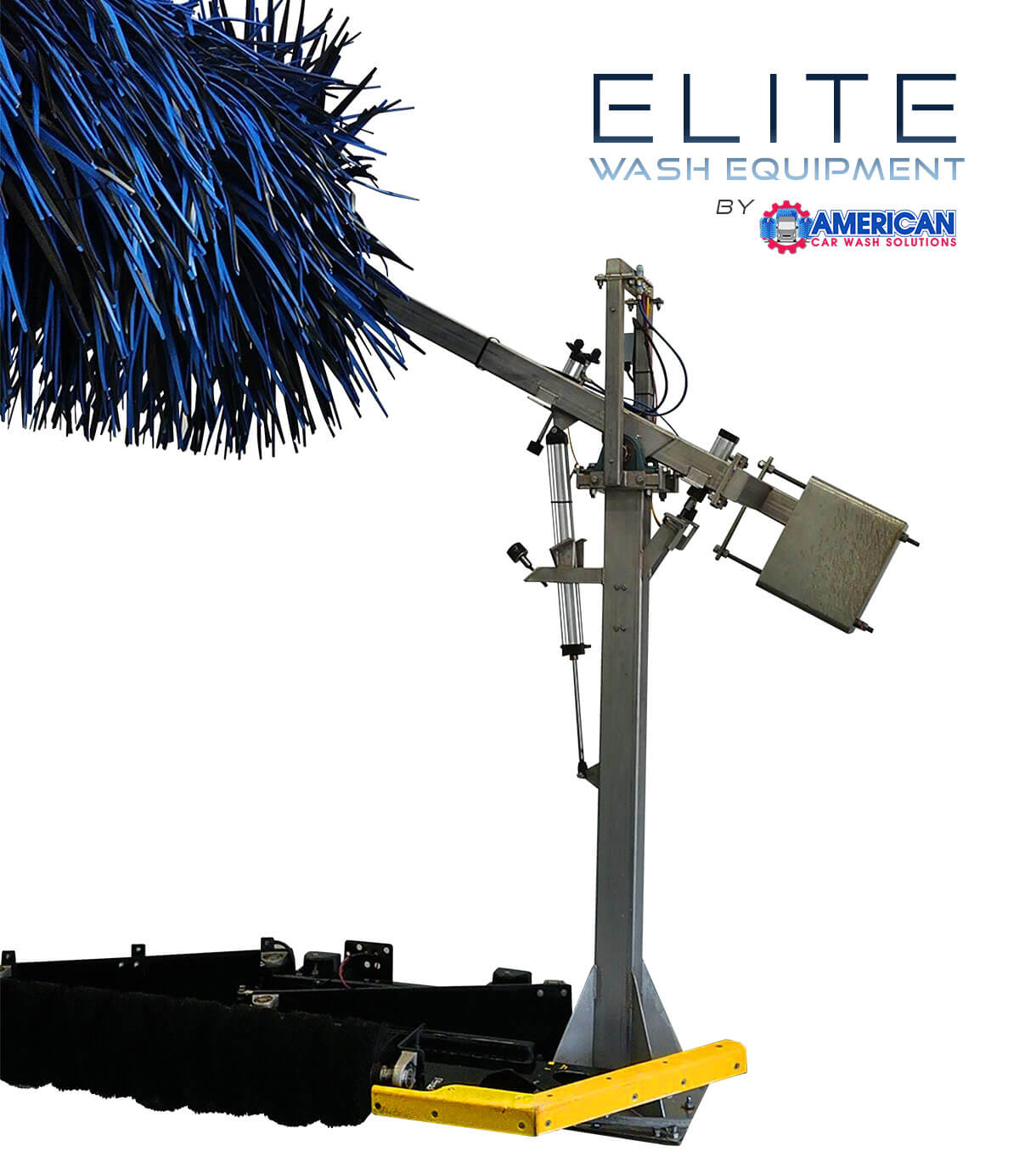

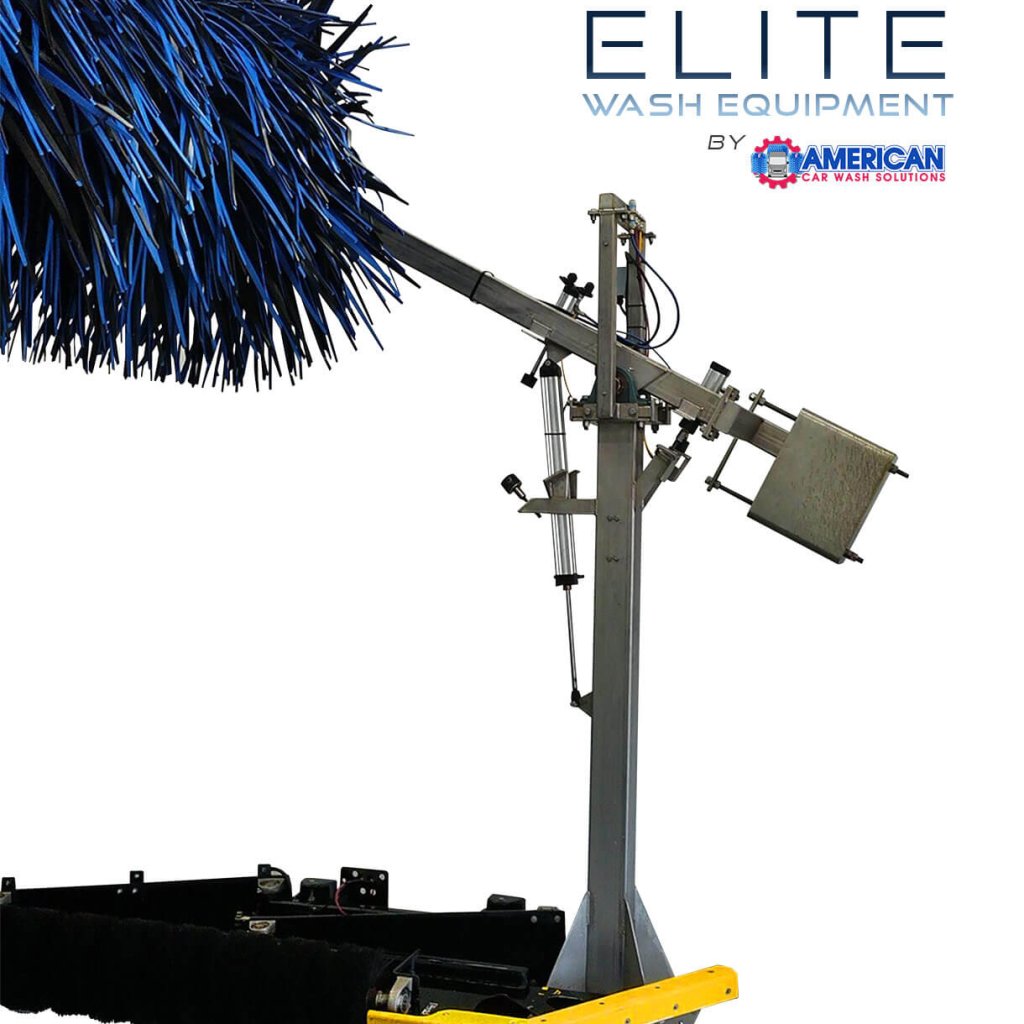

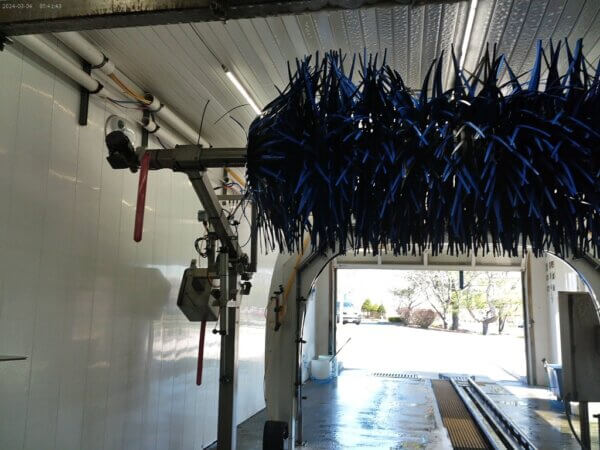

Elite 25 Top Brush

This advanced top brush system is built for performance, with optimized rotation and pressure control to clean thoroughly without sacrificing safety. Whether it’s a compact sedan or a lifted pickup, the Elite 25 Top Brush delivers consistent, high-quality results. A space efficient stainless steel top brush with excellent cleaning capabilities. Built to provide smooth operation with air and regulators or can be enhanced with customer controller. They can be stacked in line to provide even more cleaning power.

Features

• Delivers controlled impact with limited bounce and a smooth, uninterrupted motion
• Neo Glide or Gallop foam
• Cantilever design can be mounted on either side of wash bay
• Electric drive
• Stainless steel construction
• Direct Drive
• Water solenoid valve – optional voltage
• One year manufacturer warranty

Options

• Left or right side mounting
• Solid or Mixed Foam

Technical Data

Electrical: motor

• 208/230/460 VAC, 60Hz
• 3 Phase – 0.9 kW

Electrical: Variable frequency drive

• 200 Vac, 60Hz
• Single phase – 0.75 kW

Control voltage

• 24 VAC
• 24 VDC
• 110 VAC

Water

• ½” polytube
• 40 PSI (2.8 bar) MIN. pressure
• 2 GPM (7.6 LPM)

Pneumatics

• ¼” line
• 5 CFM (0.014 CU.WMIN)
• 100 PSI (6.9 BAR)

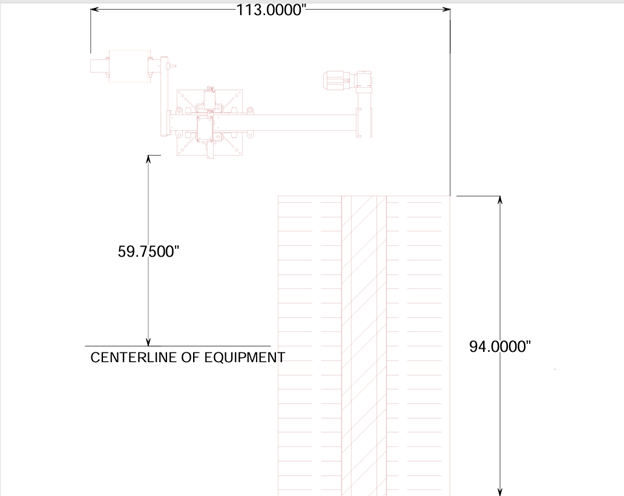

Dimensions

• 113” tunnel length
• 150 high with foam extended
• 147” wide (from end of brush to weight basket)
